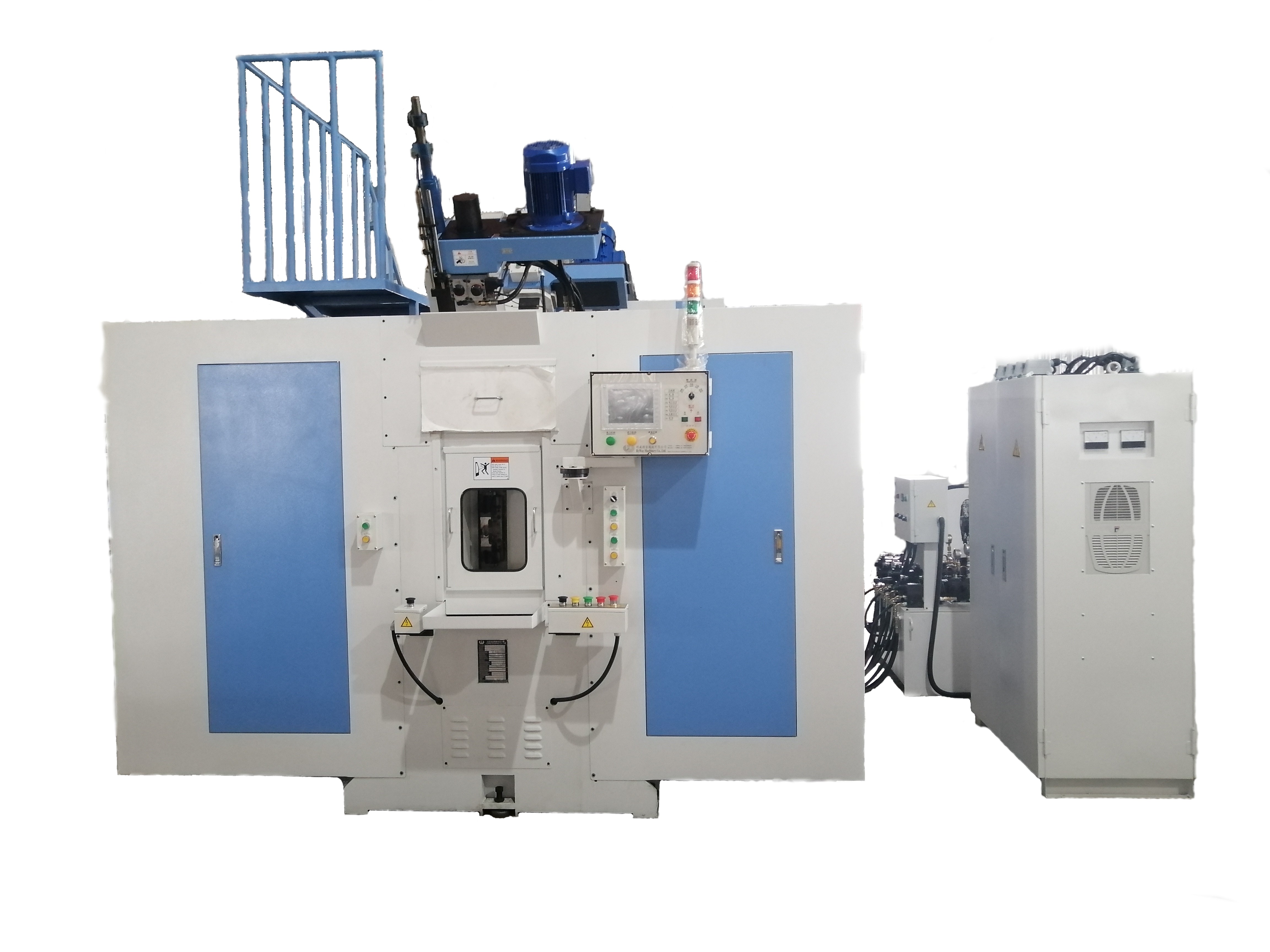

7 Spindles Trunnion Type Rotary Transfer Machine
:::
7 Spindles Trunnion Type Rotary Transfer Machine
PR
Special machine
974
2021-11-10

   Model：HWM05R4H03N (HWM11T6V07N-HB)

   Video introduction 1

   Video introduction 2


 01. Rotary table indexed into equal parts for drilling and tapping synchronously, save machining time.
 02. Rotary table provided with high index accuracy and precision.
 03. Synchronously machining in 2 directions, have good concentricity.
 04. According to the request add main spindle head、facing mechanism.
 05. Mold can be changed easily, remove convenience.
 06. Type of clamp: 2 jaws synchronous clamp....etc.

機器型式：HWM11T6V07N
11 T 6 V 7 N
主軸規格   加工工位 夾具/盤面方位 主軸軸數 控制方式
08：Ø80
11：Ø110
15：Ø150		   4：四分割
6：六分割
8：八分割		 V：垂直
H：水平		 05：5軸
06：6軸
~
14：14軸		 C：CNC
N：NC
H：PLC

HWM11T6V07N 水車式專用機
主軸 鼻端 行程 馬力 加工能力
Ø110 NT40 140mm 3HP / 4p 11set /1pc
Ø110 NT40 140mm 3HP / 6p 11set / 1pc


Artifact

Before and after processing
